BMW N54 Common Torque Specifications: Complete DIY Engine Reference
A sourced BMW N54 torque-spec reference for common maintenance and DIY repairs. Covers oil service, spark plugs, valve cover, oil-filter housing, intake manifold, direct-injection fuel lines and aluminum oil-pan hardware, including torque-angle procedures and replacement-bolt notes.
The BMW N54 has been an enthusiast engine for long enough that many cars are now on their second or third round of the jobs that define ownership: spark plugs, valve covers, oil-filter-housing gaskets, oil-pan leaks and direct-injection service. The useful torque specifications are scattered across separate BMW repair sections, and several involve aluminum hardware or torque-angle procedures that should not be replaced with a guess.
This reference consolidates the most useful N54 engine torque specifications for routine maintenance and common repairs. Brakes, suspension, wheel bolts, engine mounts, transmissions, differentials and other chassis-specific hardware belong in the reference for the exact BMW chassis.
Affiliate disclosure: Some links are affiliate links. Department69 may earn a commission at no additional cost to you. Products are placed only where directly relevant. Confirm exact vehicle fitment before ordering.
Quick-reference BMW N54 torque specifications
| Component | Torque | Application / note |
|---|---|---|
| Engine oil drain plug | 25 Nm / 18.4 ft-lb | N54 M12x1.5. |
| Oil-filter cap | 25 Nm / 18.4 ft-lb | N54 oil-filter housing. |
| Spark plugs | 23 Nm / 17.0 ft-lb | BMW N54 spark-plug tool documentation. |
| Valve-cover bolts | 8.5 Nm / 75.2 in-lb | N54 M6 cylinder-head-cover fasteners. |
| Oil-filter housing to cylinder head | 22 Nm / 16.2 ft-lb | N54 M8 housing bolts. |
| Oil/water heat exchanger to housing | 16 Nm / 11.8 ft-lb | N54 M8x20. |
| Intake manifold to cylinder head | 15 Nm / 11.1 ft-lb | N54 M7x50 bolts and AM7 nuts. |
| High-pressure rail to cylinder head | 13 Nm / 9.6 ft-lb, tolerance ±2 Nm / ±1.5 ft-lb | N54/N53 M7x16. |
| High-pressure lines, rail to injectors | 25 Nm / 18.4 ft-lb | N54/N53 M12 connections. |
| High-pressure line, rail to pump | 30 Nm / 22.1 ft-lb, tolerance ±3 Nm / ±2.2 ft-lb | N54/N53 M14 connection. |
| Oil-pan bolts, M8x26 | 8 Nm / 70.8 in-lb + 90° | Aluminum bolts; replace. |
| Oil-pan bolts, M8x92 / M8x112 | 8 Nm / 70.8 in-lb + 180° | Aluminum bolts; replace. |
What BMWs does this N54 guide apply to?

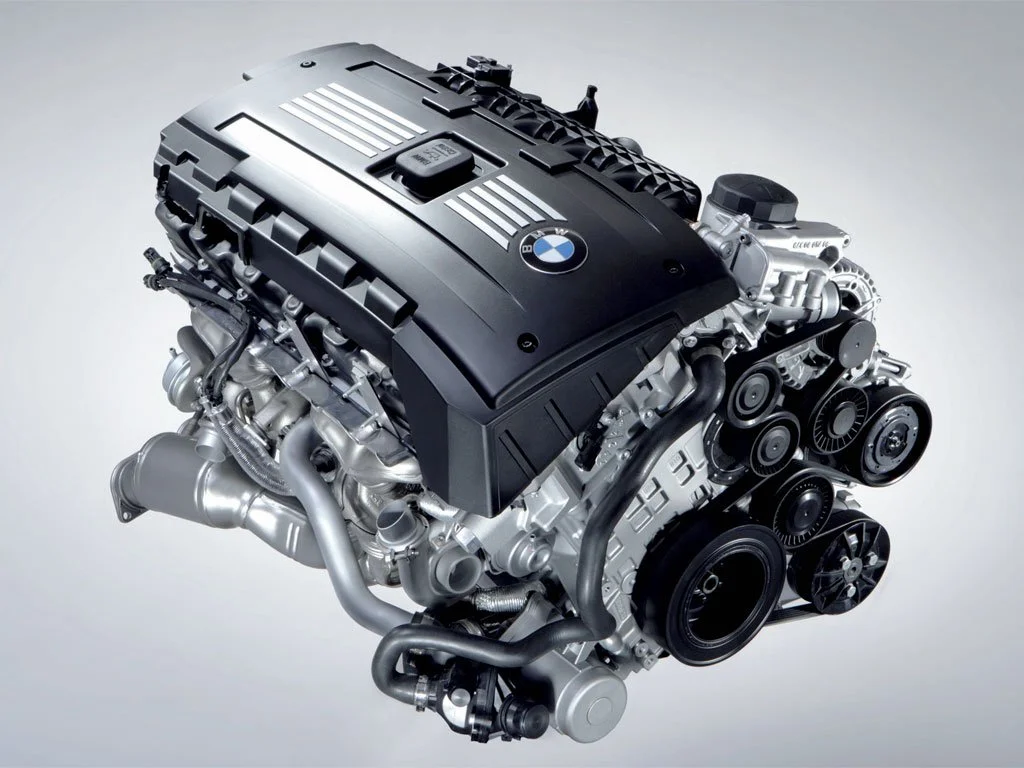

This page is scoped to BMW's 3.0-liter twin-turbo N54 engine, not to one chassis. Familiar U.S.-market applications include the E82/E88 135i, E82 1 Series M Coupe, E9x 335i/335is, E60/E61 535i, E71 X6 xDrive35i, E89 Z4 sDrive35i/sDrive35is and early F01/F02 740i/740Li applications. Engine-level values can span those cars; chassis hardware cannot, so it is intentionally excluded.
N54 oil-change torque specs
BMW's N54 oil-pan specification lists the M12x1.5 drain plug at 25 Nm / 18.4 ft-lb. The separate oil-filter specification lists the filter cap at the same 25 Nm / 18.4 ft-lb.
| Component | Torque | Source |
|---|---|---|
| Oil drain plug, M12x1.5 | 25 Nm / 18.4 ft-lb | BMW TIS-derived N54 oil-pan specification |
| Oil-filter cap | 25 Nm / 18.4 ft-lb | BMW TIS-derived N54 oil-filter specification |
N54 spark-plug torque
BMW's N54 spark-plug tool documentation specifies a 23 Nm / 17.0 ft-lb torque limiter. See the BMW TIS-derived N54 spark-plug documentation.
For a stock-replacement service, Turner's Bosch ZGR6STE2 N54 spark-plug set is specifically cataloged for N54 applications including the E9x 335i/335xi, E60 535i/535xi and E89 Z4 sDrive35i/sDrive35is. Modified engines may require a different plug or gap.
N54 valve-cover torque specs
The N54 plastic valve cover incorporates crankcase-ventilation hardware and is a familiar source of oil and vacuum leaks. BMW specifies only 8.5 Nm / 75.2 in-lb for the M6 cover fasteners.
| Valve-cover-area component | Torque | Notes |
|---|---|---|
| Cylinder-head / valve-cover bolts, M6 | 8.5 Nm / 75.2 in-lb | N54 specification. |
| Metal bracket to cylinder head, M6x16 | 8 Nm / 70.8 in-lb | N54 specification. |
| Lug to cylinder head, M8x20 | 19 Nm / 14.0 ft-lb | N54 specification. |
| Ignition-coil cover to cylinder-head cover, M6x20 | 4 Nm / 35.4 in-lb | N54 specification. |
Source: BMW TIS-derived N54 cylinder-head-cover specification. If the cover itself is cracked or warped, Turner's N54 valve-cover upgrade kit is explicitly listed for the N54 3.0L and includes the cover, gasket, hardware, blow-by hose and upgraded PCV component. Confirm fitment with the vehicle selector.
N54 oil-filter-housing and turbo oil-line torque specs
The oil-filter-housing gasket is a high-value N54 maintenance job because leakage can contaminate the accessory-belt area. FCP Euro's N52/N54 oil-filter-housing procedure also cautions against overtightening the cast-aluminum components.
| Component | Torque | Notes |
|---|---|---|
| Oil-filter cap | 25 Nm / 18.4 ft-lb | N54 specification. |
| Oil-filter housing to cylinder head, M8 | 22 Nm / 16.2 ft-lb | M8x78, M8x48 and M8x28 housing bolts. |
| Oil/water heat exchanger, M8x20 | 16 Nm / 11.8 ft-lb | N54 specification. |
| Oil feed to crankcase, M8x35 | 20 Nm / 14.8 ft-lb | N54 specification. |
| Turbo oil-pressure line to turbo, M6x10 | 8 Nm / 70.8 in-lb | N54 specification. |
| Turbo oil-pressure line to crankcase, M8x12 | 20 Nm / 14.8 ft-lb | N54 specification. |
| Turbo oil-return line to turbo, M6x14 | 8 Nm / 70.8 in-lb | N54 specification. |
| Turbo oil-return line to crankcase, M6x10 | 8 Nm / 70.8 in-lb | N54 specification. |
Source: BMW TIS-derived N54 oil-filter and oil-line specification. Turner's N54/N55 oil-filter-housing gasket kit includes both housing gaskets plus associated hardware and is explicitly listed for N54 applications including the 135i, 1M, 335i/335is, 535i, 740i and Z4 sDrive35i/sDrive35is.
N54 intake-manifold torque
BMW specifies 15 Nm / 11.1 ft-lb for both the N54 M7x50 intake-manifold fasteners and AM7 hex nuts. Source: BMW TIS-derived N54 intake-manifold specification.
N54 direct-injection fuel-system torque specs
High-pressure fuel work requires more than a torque value. BMW specifies connection order, line positioning and sealing precautions. Safely depressurize the system and use the complete applicable repair procedure.
| Fuel-system component | Torque | Notes |
|---|---|---|
| High-pressure rail to cylinder head, M7x16 | 13 Nm / 9.6 ft-lb, tolerance ±2 Nm / ±1.5 ft-lb | N54/N53. |
| High-pressure line to cylinder head, M7x16 | 13 Nm / 9.6 ft-lb, tolerance ±2 Nm / ±1.5 ft-lb | N54/N53. |
| Injector holding-down element, M7x20 | 13 Nm / 9.6 ft-lb, tolerance ±2 Nm / ±1.5 ft-lb | N54/N53; follow injector sealing procedure. |
| Feed line to high-pressure pump, M14 | 30 Nm / 22.1 ft-lb | BMW identifies a special tightening torque. |
| High-pressure line, rail to pump, M14 | 30 Nm / 22.1 ft-lb, tolerance ±3 Nm / ±2.2 ft-lb | Follow complete connection procedure. |
| High-pressure lines, rail to injectors, M12 | 25 Nm / 18.4 ft-lb | Follow BMW tightening sequence. |
| Fuel-feed-line bolt, M8x17 | 10 Nm / 7.4 ft-lb + 90° ±15° | BMW specifies replacement. |
Source: BMW TIS-derived N54/N53 fuel-injection and high-pressure-line specification.
N54 oil-pan torque specs and aluminum bolts
The N54 oil pan is a strong example of why bolt dimensions matter. BMW specifies replacement aluminum bolts and different angle stages depending on bolt length.
| Oil-pan fastener | Torque | Hardware note |
|---|---|---|
| M8x26 oil-pan bolts | 8 Nm / 70.8 in-lb + 90° | Aluminum bolts marked with blue paint; replace. |
| M8x92 / M8x112 oil-pan bolts | 8 Nm / 70.8 in-lb + 180° | Aluminum bolts marked with blue paint; replace. |
| M6x20 oil-deflector fasteners | 4 Nm / 35.4 in-lb + 90° | Aluminum fasteners; replace. |
| M12x1.5 oil drain plug | 25 Nm / 18.4 ft-lb | N54 specification. |
Source: BMW TIS-derived N54 oil-pan specification. A torque-plus-angle procedure is not interchangeable with a higher guessed torque value.
Frequently asked questions
What is the BMW N54 spark-plug torque?
23 Nm / 17.0 ft-lb.
What is the N54 valve-cover bolt torque?
The M6 cylinder-head-cover fasteners are 8.5 Nm / 75.2 in-lb.
What is the N54 oil drain-plug torque?
The M12x1.5 drain plug is 25 Nm / 18.4 ft-lb.
What is the N54 oil-filter-cap torque?
25 Nm / 18.4 ft-lb.
What is the N54 oil-filter-housing torque?
Housing to cylinder head is 22 Nm / 16.2 ft-lb; the oil/water heat exchanger to housing is 16 Nm / 11.8 ft-lb.
What is the N54 intake-manifold torque?
15 Nm / 11.1 ft-lb for the cited M7x50 fasteners and AM7 nuts.
Can N54 aluminum oil-pan bolts be reused?
BMW explicitly specifies replacement. M8x26 bolts use 8 Nm / 70.8 in-lb + 90°; M8x92/M8x112 bolts use 8 Nm / 70.8 in-lb + 180°.
What is the N54 high-pressure fuel-line torque?
The M14 rail-to-pump line is 30 Nm / 22.1 ft-lb, tolerance ±3 Nm / ±2.2 ft-lb; M12 rail-to-injector lines are 25 Nm / 18.4 ft-lb. Use the complete fuel-system procedure.
Sources and further reading
- BMW TIS-derived N54 cylinder-head-cover specifications
- BMW TIS-derived N54 spark-plug documentation
- BMW TIS-derived N54 oil-filter and oil-line specifications
- BMW TIS-derived N54 intake-manifold specifications
- BMW TIS-derived N54/N53 fuel-system specifications
- BMW TIS-derived N54 oil-pan specifications
- FCP Euro: N52/N54 oil-filter-housing gasket replacement
Last note: torque specifications are only one part of a repair. Verify the exact application, use the complete repair instructions, replace single-use hardware where required and stop if the hardware in front of you does not match the cited specification.
